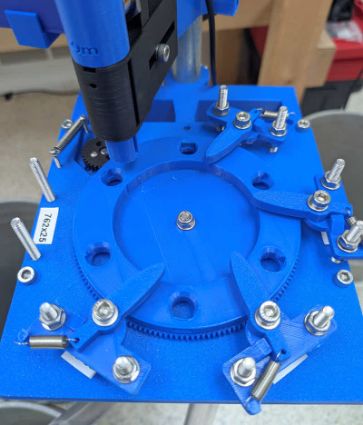

SnapSorter 2 Brass Shell Casing Sorter

🔹 Key Features – SnapSorter

• Sorts brass by height automatically

• Handles up to 5,000 cases per hour (pistol calibers)

• Sorts a bucket in about 1 hour

• 5 adjustable sorting positions

• Preset heads for common pistol & rifle calibers

• Designed for high-volume reloaders, clubs, and ranges

• Design will be OPEN SOURCE on GitHub soon.

• 30-day money-back guarantee

• 1-year parts & labor warranty

• Note: This project is licensed under the CERN-OHL-N. All derivative designs and improvements must also be shared publicly.

SnapSorter – Sort Brass by Height

Manually separating 9mm from .380 ACP (and similar calibers) is time-consuming and frustrating. The SnapSorter automates the process, letting you sort brass quickly, accurately, and consistently.

This system can sort a bucket of brass in about one hour, making it easy to process 8 or more buckets per day with minimal supervision.

How It Works

The SnapSorter separates brass by case height, making it ideal for calibers with similar base diameters but different lengths.

✔ Works best when:

• Case height difference is at least 0.10 inches

• Base diameters are similar (example: 9mm / .380)

⚠️ Note: Calibers with significantly different base diameters (such as .30-30 and .308), or nested cases cannot be sorted together. Additionally, defective brass, such as extremely bent or malformed brass will not pass through the system, these have to be removed prior to sorting.

Common Calibers Sorted

Currently used to sort:

• 9mm / .380 ACP.  Four Height Arm Assemblies

• .38 Special / .357 Magnum.  One Height Arm Assemblies

• .40 S&W / 10mm Auto.  One Height Arm Assemblies

• .223 / 300 Blackout.  One Height Arm Assemblies. Extra arm can be used for 222 Remington

• .308 / 6.5 Creedmoor / .30-06.  Three Height Arm Assemblies

• 44 Special / 44 Magnum.  One Height Arm Assemblies


• 45 ACP / 45 GAP.  One Height Arm Assemblies. Extra arm can be used for 460s

Sorting heads are preset but fully adjustable by user. Height arms (flippers) are installed for each caliber sorted. A spare complete Height Arm Assembly is included should you want to add a caliber that is not preset by us.

Sorting Speed (Approximate)

• 9mm & small pistol brass: 4,500–5,000 cases/hour (5 gallon bucket)

• .38 & .40 calibers: ~4,000 cases/hour (5 gallon bucket)

• Rifle brass: Slower (3,000 - 3,500 cases/hour)

⚠️ For pistol calibers, the limiting factor is often the brass collator speed, not the SnapSorter.

A large 16" high-speed collator is currently in development holds 800+ 9m cases at  6,500+ per hour

What’s Included

• Complete SnapSorter unit

• Configured for your choice of brass sizes (listed below)

• Power supply

• Single controller for power & speed control

• Table-mount assembly or mounting brackets for 3/4" EMT conduit

• Setup instructions (web page)

Not Included (Required)

• Brass collator
  (brass must be dropped base-down, as for reloading)

• Tube from collator to unit (3/4" OD)

• Mounting solution (table or EMT)

• Buckets or containers for sorted brass

• Output tubes (3/4" OD, 5/8" ID – widely available at Home Depot)

Power Requirements

• 110–120V AC

• 60 Hz

• Less than 3 amps

Availability & Warranty

• Limited production, these are assembled after order has been received.

• 5 units released weekly (first come, first served)

• From order received to ship date is about 1 week

• All parts open sourced, will be placed on GitHub and can be purchased off the internet

Warranty

• 30-day money-back guarantee

• 1-year parts & labor warranty

Manufacturing Note

Due to the nature of 3D additive manufacturing, minor cosmetic layer lines or inclusions may be present. These do not affect function or performance.,
